Centrifugal Pump Packing
Thermal Insulation Oil Sealing Graphite Gland Packing
Description of Oil Sealing Graphite Gland Packing:
Pure Flexible Graphite Packing is made from expanded graphite yarn braided into through all kinds of technology of braiding .
Graphite Gland Packing are almost suitable to all media, such as hot water, steam, acids, alkalis, organic solvents,hydrocarbons, low temperature liquids, etc.
The sealing cap ability is more better and safety,it is the most effctive composite parts forsolving problems, Pure Flexible Graphite Packing is very popular.
Application of Oil Sealing Graphite Gland Packing:
1.Flexible Graphite Packing can be used in valve and some rotary application, high temperature valve and soot blowers.
2.Flexble Graphite Packing is suitable for all application, seals hot water, high temperature and pressure steam, heat transfer fluid , hydrogen gas, ammonia, Solvents. Hydrocarbons, Cryogenic liquids, etc.
|STYLE ||Types of Expanded Graphite Braided Packing |
|STYLE 5000 ||Pure Flexible Graphite Packing |
|STYLE 5000FG ||Pure Flexible Graphite Packing with Fiberglass Threads Reinforced |
|STYLE 5000C ||Pure Flexible Graphite Packing with Carbon Fiber Threads Reinforced |
|STYLE 5000INC ||Pure Flexible Graphite Packing with Inconel Threads Reinforced |
Advantages of Oil Sealing Graphite Gland Packing:
1. High temperature resistance
2.High pressure resistance
3.Almost suitable to all media
4.The sealing cap ability is more better and safety
Application Data of Oil Sealing Graphite Gland Packing:
| || || || |
|Pressure:bar ||20 ||100 ||300 |
|Speed:m/s ||22.8 ||2 ||1.5 |
|PH Range ||1-14 |
|Temp.℃ ||1650℃ in Non oxidizing condition; -240℃in Cryogenics;-185 to +450 in oxid; -185 to +650 in steam |
| Density: (g/cm³) || 1.45-1.50 |
|Size || 1/8"-2" |
| 3mm-50mm |

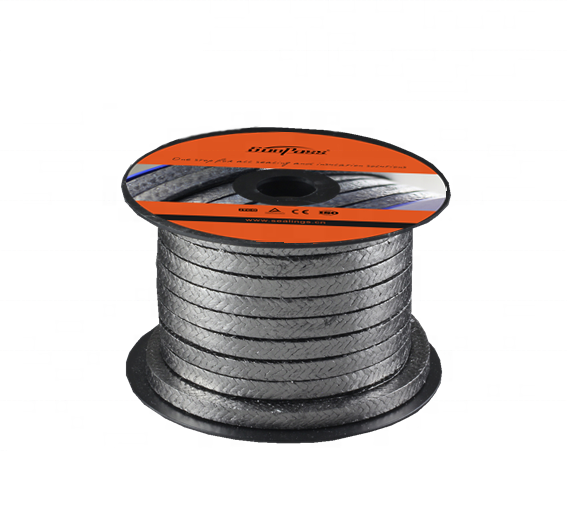

Picture of Oil Sealing Graphite Gland Packing:
