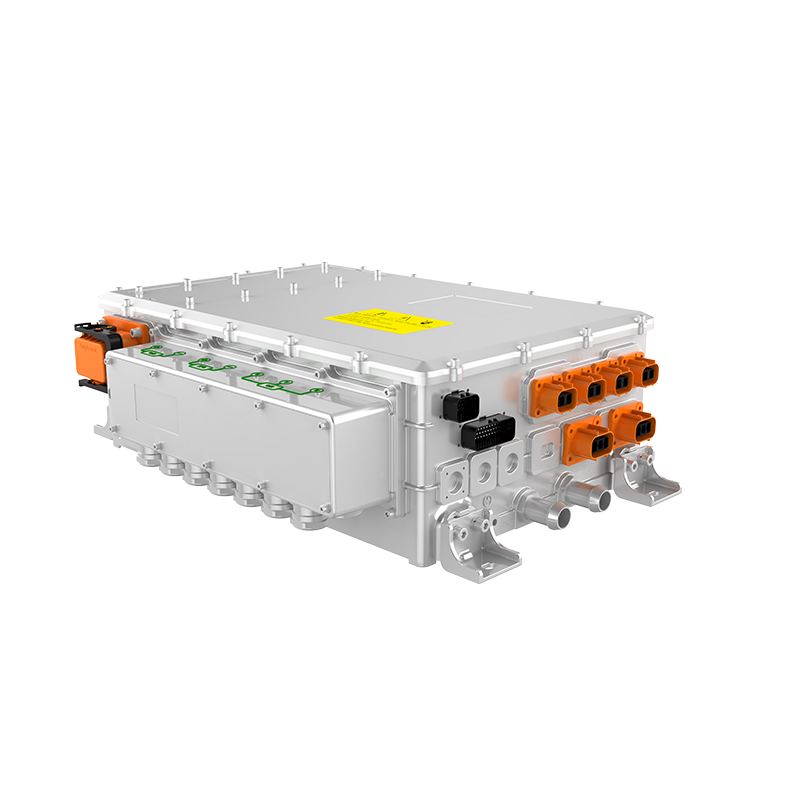

4 in 1 Power Conversion Integrated Controller
Technical Parameter
Product Model | HC60L5PIC-720 |
Rated Power | 5.5/5.5/3kW |
Peak Power | 7.5/7.5/3.3kW |
Working Voltage Range | 450-750VDC |
Low Voltage System Control Power Supply | 24VDC |
Cooling Method | Liquid Cooling |
Insulation Monitoring | Standard |
Weight | 25KG |
Protective Class | IP 67 |
Applicable Models | 6-12M Electric Buses |
High Voltage Integrated Controller
Integrated Controller is the safety center of new energy vehicles, as the combination of high voltage distribution, air pump and oil pump DC/AC controller, DC/DC controller and insulation monitoring responsible for battery power transformation and transmission control.
Product Overview
Intelligent Control
With a built-in intelligent control module, it has the function of high voltage detection and fault self-diagnosis of contactor, melting breaker and other parts.
Integrated
Adopting modular design concept, realizing the integration of DC/DC, high voltage power distribution module and so on.
Safe and Reliable
It is designed according to TS16949 standard, reaching IP67 level of protection. Products meet the requirement of EMC related national standards, and pass through salt spray, vibration, constant temperature and humidity environment adaptability test.
Universal Convenient
Integrated vehicle control strategy, which rich external interface, flexible high voltage distribution solutions to meet the different needs of customers.
Dimension
Application
