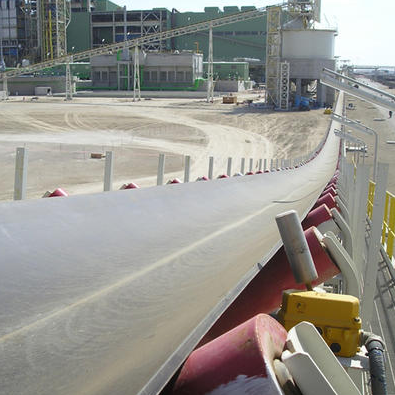

The Belt Conveyor is advanced and simple in structure, easy to maintain. Its transfer capacity is high, transfer distance is long. They are widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material.
We can design the system to meet your requirements,your any inquiry is highly appreciated.
Belt width (mm) | 500 | 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | |
Belt speed (㎡/h) | Conveying quantity(t/s) | |||||||||||
0.8 | 69 | 127 | 198 | 324 | - | - | - | - | - | - | - | |
1.0 | 87 | 159 | 248 | 405 | 593 | 825 | - | - | - | - | - | |
1.25 | 108 | 198 | 310 | 507 | 742 | 1032 | - | - | - | - | - | |
1.60 | 139 | 254 | 397 | 649 | 951 | 1321 | - | - | - | - | - | |
2.00 | 174 | 318 | 496 | 811 | 1188 | 1652 | 2186 | 2795 | 3470 | - | - | |
2.50 | 217 | 397 | 620 | 1014 | 1486 | 2065 | 2733 | 3494 | 4338 | - | - | |
3.15 | - | - | 871 | 1278 | 1872 | 2602 | 3444 | 4403 | 5466 | 6843 | 8289 | |
4.00 | - | - | - | 1622 | 2377 | 3304 | 4373 | 5591 | 6941 | 8690 | 10526 | |
4.50 | - | - | - | - | 2674 | 3718 | 4920 | 6291 | 7808 | 9776 | 11842 | |
5.00 | - | - | - | - | 2971 | 4130 | 5466 | 6989 | 8676 | 10863 | 13158 | |
5.60 | - | - | - | - | - | - | 6122 | 7829 | 9717 | 12166 | 14737 | |
6.50 | - | - | - | - | - | - | - | 9083 | 11277 | 14120 | 17104 |
