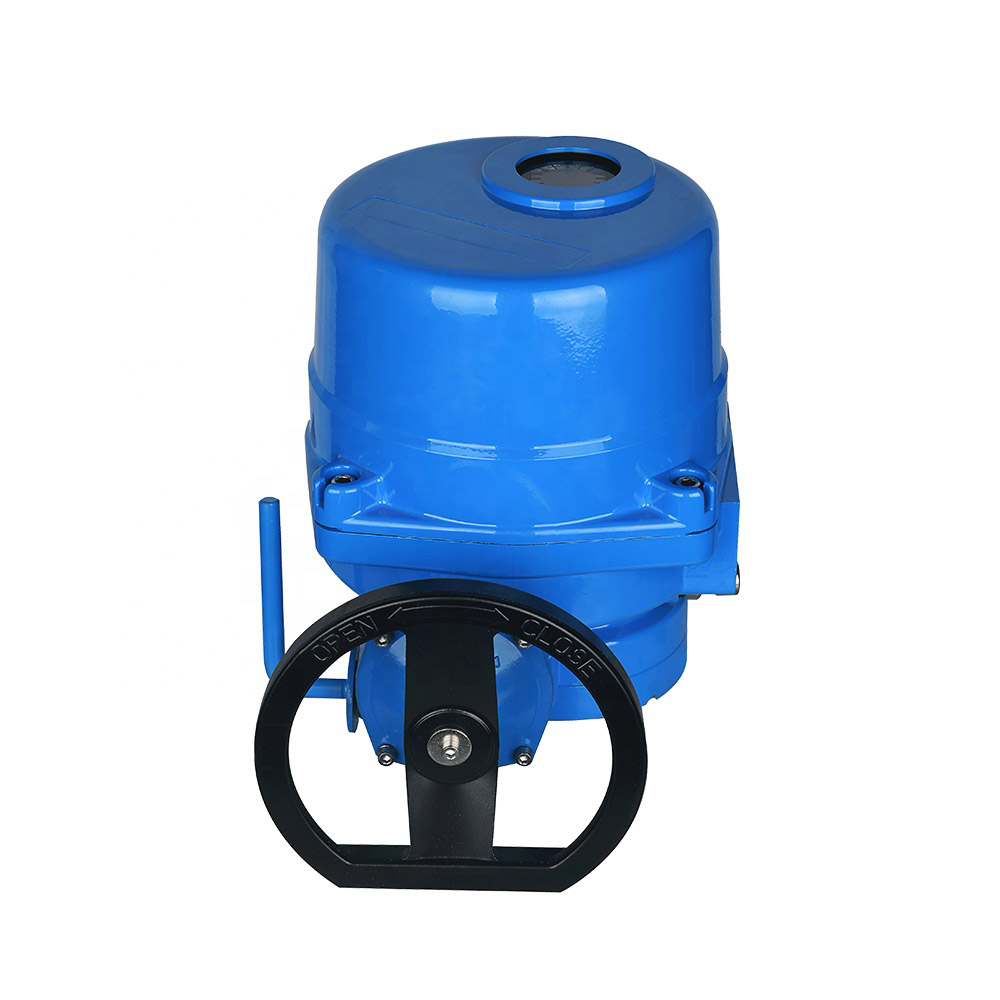

Electric Quarter Turn Rotary Actuator for Butterfly Valve

Electric Quarter Turn Rotary Actuator for Butterfly Valve
Quantity:
  • GM-EA001

Electric Quarter Turn Rotary Actuator for Butterfly Valve



Features:

1. Shell

  The shell is made of horniness auminium alloy, pass through anodic oxidation treatment and polyester powder coating, so it has strong corrosion resistance. Protection grade is IP67,NEMA4 AND 6, and optional IP68 type.

2. Electric Machinery

Fully enclosed Squirrel-cage electric Machinery, small volume, large torque, and small inertia force, F-class insulation rating, Inside hot protection switch, avoid damaging the electric machinery.

3. Manual Structure

The design of handle ensure safe, reliable, labor-saving, small volume. When it don’t have electricity, it can be manually operated by handle. When you don't operate by manus, you can put the wrench in the wrench folder, then you can use it.

4. Indicator

Indicator installes in the center axis, so it can observes the valve position. It adopts convex mirror design, no cumulate water, more convenient to observe.

5. Desiccator

It is used for control temperature, avoiding internal moisture of electric actuator condensed because of the changing of temperature and weather,keep inner electric device dry.

6. Sealing

Good sealing performance, and the protection class of standard product is IP67, and optional IP68 protection grade.

7. Limit switch

Mechanical, electronic double limit. Mechanical limit screw is adjustable, safe and reliable; electron limit switch is controlled by the cam mechanism, easy adjustment institutions can set the position accurately and conveniently, and it doesn’t affect overly by handwheel.
