Pipe Conveyor Belt

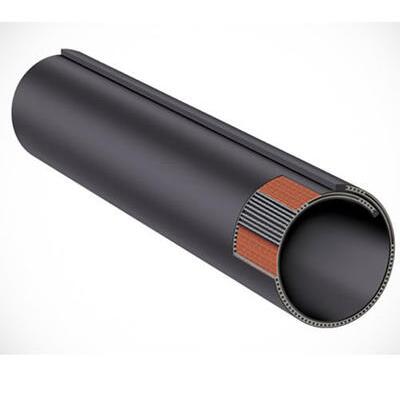

Pipe conveyor belt is a new type of conveying belt which uses high tenacity canvas EP/NN or steel cord as carcass, high elastic, high anti-abrasive and high strength rubber as working surface.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Pipe conveyor belt is a new type of conveying belt which uses high tenacity canvas EP/NN or steel cord as carcass, high elastic, high anti-abrasive and high strength rubber as working surface. It’s mainly used in conveying materials which are easily polluted like power, granular materials, etc. when working, the rubber belt changes its form from flat to U shape and finally to pipe, folding the materials and realizing the process of enclosed conveying. Enclosed conveying of materials, protecting both the materials and the environment.

Width & pipe diameter
Belt width & corresponding pipe diameter (unit: mm)

Belt width	360	600	800	1000	1100	1300	1600	1850	2250	2450	2900	3100
Pipe diameter	100	150	200	250	300	350	400	500	600	700	800	850

Pipe Conveyor Belt

Used for tubular conveyor's transportation

Cover properties	Tensile strength	Breaking elongation	Abrasion loss	Anti ozonea	Change rate of tensile strength & breaking elongation after hot air ageingb, %
D	18.0	400	90	No crack	-25~+25
H	24.0	450	120	No crack	-25~+25
T1、T2	10.0	300	200	-	-45~+45
a. Anti ozone testing conditions: concentration (50±5)×10-8 (volume fraction), temperature (40±2)℃, elongation (40±2)%, time 96h. b. Hot air ageing testing conditions: D, H type belt 70℃×168h; T1 type belt 100℃×168h; T2 type belt 125℃×168h.
Note: D—high abrasion working conditions; H—high tear working conditions; T1—Heat resistance 100℃ working conditions; T2—Heat resistance 125℃ working conditions.
