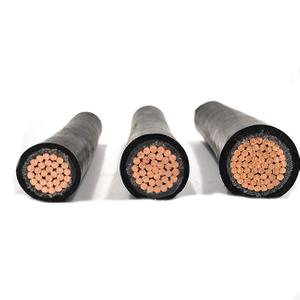

RVV
Product name:
Color:
Conductor:
Insulation:
Jacket:
Core:
MOQ:
Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.
Voltage Level (V) | Nominal section (mm²) | Toplimit of overall diameter (mm) | Maximum DC resistance (20℃) | Minimum insulation resistance (70℃) | Recommended value of carrying capacity (A) | Reference weight (KG,KM) |
300/300 | 2x0.5 | 5.9 | 3.9 | 0.012 | 10 | 37 |
2x0.75 | 6.3 | 26.0 | 0.01 | 13 | 47 | |
3x0.5 | 6.3 | 39.0 | 0.012 | 8 | 44 | |
3x0.75 | 6.7 | 26.0 | 0.01 | 10 | 58 | |
2x0.75 | 7.2 | 26.0 | 0.011 | 13 | 58 | |
300/500 | 2x1.0 | 7.5 | 19.5 | 0.01 | 16 | 66 |
2x1.5 | 8.6 | 13.30 | 0.01 | 20 | 89 | |
2x2.5 | 10.6 | 7.98 | 0.009 | 27 | 137 | |
2x4 | 12.4 | 4.95 | 0.007 | 38 | 205 | |
2x6 | 14.5 | 3.30 | 0.006 | 50 | 280 | |
3x0.75 | 7.6 | 26.00 | 0.011 | 9 | 70 | |
3x1.0 | 8.0 | 19.50 | 0.01 | 11 | 80 | |
3x1.5 | 9.4 | 13.300 | 0.01 | 12 | 112 | |
3x2.5 | 11.4 | 7.980 | 0.009 | 21 | 172 | |
3x4 | 13.5 | 4.950 | 0.007 | 27 | 255 | |
3x6 | 14.0 | 3.30 | 0.006 | 34 | 340 | |
4x0.75 | 8.3 | 26.0 | 0.011 | 10 | 84 | |
4x1.0 | 9.0 | 19.50 | 0.01 | 12 | 101 | |
4x1.5 | 10.5 | 13.30 | 0.01 | 13 | 141 | |
4x2.5 | 12.5 | 7.98 | 0.009 | 21 | 210 | |
4x4 | 14.6 | 4.95 | 0.007 | 27 | 310 | |
4x6 | 16.0 | 3.30 | 0.006 | 35 | 425 | |
5x0.75 | 9.3 | 26.00 | 0.011 | 10 | 103 | |
5x1.0 | 9.8 | 19.50 | 0.01 | 12 | 119 | |
5x1.5 | 11.6 | 13.30 | 0.01 | 13 | 172 | |
5x2.5 | 13.9 | 7.98 | 0.009 | 22 | 257 | |
5x4 | 16.5 | 4.95 | 0.007 | 27 | 386 | |
5x6 | 17.3 | 3.30 | 0.006 | 35 | 51 |
