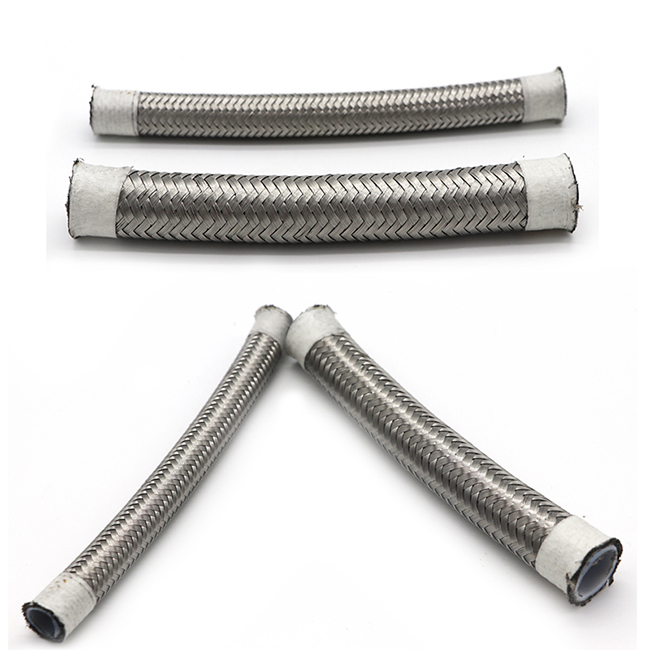

High Pressure Hydraulic PTFE Hose Pipe In NBR

Material: NBR
Reinforcement: high tensile steel wire
Cover: weather resistant synthetic rubber
Availability:
Quantity:
sharethis sharing button
  • GM-Hose010

  • Goodmax

High Pressure Flexible Hydraulic PTFE Hose Tube

Customized differet dimension hydraulic hose for different working pressure.


Hose I.D. (size)

-4

-6

-8

-12

-16

Hose Outside Diameter0.34 to 1.14 inch (9 to 29 mm)
Hose Inside Diameter

3/16 inch (5mm)

5/16 inch (8mm)

13/32 inch (10mm)

5/8 inch (16mm)

7/8 inch (22mm)

Maximum Operating Pressure83 - 207 bar (1,200 - 3,000 psi)
Minimum Bend Radius2 - 3/4 inch (51 - 188 mm)
Product StyleNatrual, Static-Dissipative
Vacuum Pressure Rating28 Inch-Hg (711.2 mm-Hg)
Temperature Range-73C to 232C (-100F to450F)
Hose Type

PTFE Hose

Heavy Wall Smoothbore natural and Static Dissipative

Applications

Fluid handling, Manufacturing/ Industrial, Medical/ Pharmaceutical, Transportation
