2/2-way Right Angle Pulse Solenoid Valve

1) Type: solenoid valves
2) Power: electric
3) Port size: G2/2
4) working pressure: 0.3-0.7Mpa
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

  • GM-FE011

  • Goodmax

Key Specifications/Special Features:

The full immersion manifold flat mount valves of the MM series deliver the most powerful air pulse in square tank systems. These diaphragm valves are designed for dust collectors and baghouses with reverse pulse jet filter cleaning systems.


1. Auxiliary products used for bag dust remover, domestic general
2. Leakage: 0min/min
3. Max. action frequency: 3 times/s
4. Max. pressure tolerance: 10kgf/cm²
5. Ambient temp.:  -15-75℃
6. Applicable kinematic viscosity value: ≤25CST (ｍｍ2/ｓ)
7. Pilot operated structure, pressure differential required
8. Coil temperature-rise allowed: ≤80℃
9. Mounted at any angle, keep coil vertically upward & installed horizontally might extend lifespan
10. Diaphragm material: normal—NBR (code: N), special---TPE (code: Tp)
11. Valve body: aluminum alloy (code: Al)
12. Lifespan: wind spray 1 million times
13. Voltage: AC220/AC130/AC240, 50/60, DC24, tolerance: ±10%, customization accepted


Previous:
Next:
valve pulse solenoid valve solenoid valve

Related Products

Electric Knife Sliding Gate Valves with Cast Iron Body
Electric Knife Sliding Gate Valves with Cast Iron Body
Pressure Pneumatic Globe Control Valve Gas Ball Valve
Pressure Pneumatic Globe Control Valve Gas Ball Valve
Electric Crushing Valve
Electric Crushing Valve
Solenoid Valve Dc4.5v Brass Valve Flow Control
Solenoid Valve Dc4.5v Brass Valve Flow Control
High Pressure Regulator 3 Way Diverter Valve Flow Control
High Pressure Regulator 3 Way Diverter Valve Flow Control
Steel Gate 3 Way Diverter Automatic Fill Valve
Steel Gate 3 Way Diverter Automatic Fill Valve
Pressure Relief Valve 3 Way Diverter Flow Switch
Pressure Relief Valve 3 Way Diverter Flow Switch
Flange Connection Electric Sliding Valve Gate
Flange Connection Electric Sliding Valve Gate

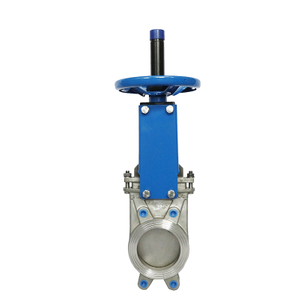

Manual Operated Hand Wheel Slide Gate Valve
Manual Operated Hand Wheel Slide Gate Valve
Pneumatic Water Gate Valve Actuator Globe Valve for Cement
Pneumatic Water Gate Valve Actuator Globe Valve for Cement

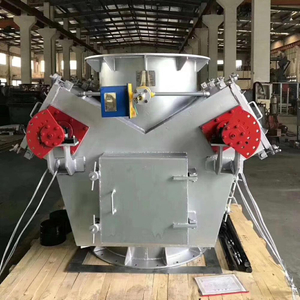

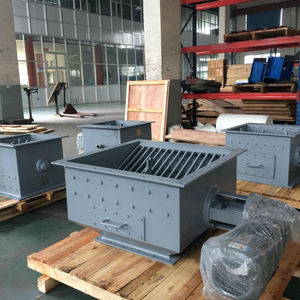

Cement Manufacturing Equipment Dust Collector Flap Check Valve Rotary Airlock Valve
Cement Manufacturing Equipment Dust Collector Flap Check Valve Rotary Airlock Valve
Electrical Rotary Airlock Discharge Ball Valve
Electrical Rotary Airlock Discharge Ball Valve
Pressure Relief Valve 3 Way Diverter Dump Valve Steel Gate
Pressure Relief Valve 3 Way Diverter Dump Valve Steel Gate
Stainless Steel Metering Valve Co2 Water Flow Control Valve
Stainless Steel Metering Valve Co2 Water Flow Control Valve

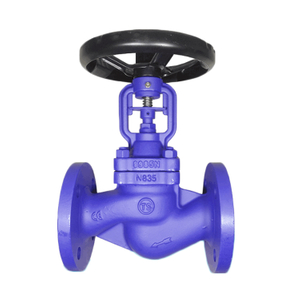

Cast Steel Stainless Steel Thread S Type Globe Valve
Cast Steel Stainless Steel Thread S Type Globe Valve
Cast Carbon Steel WCB Flange Type Bellow Seal Globe Valve
Cast Carbon Steel WCB Flange Type Bellow Seal Globe Valve

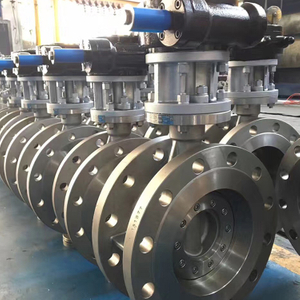

Hard Sealing Electric Wafer Butterfly Valve Actuator Butterfly Valve
Hard Sealing Electric Wafer Butterfly Valve Actuator Butterfly Valve

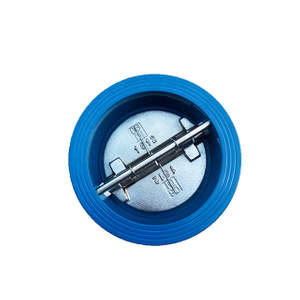

Double Disc Butterfly Type Wafer Check Valve
